Analytic Design Technique for 2D FIR Circular Filter Banks and Their Efficient Implementation Using Polyphase Approach

Abstract

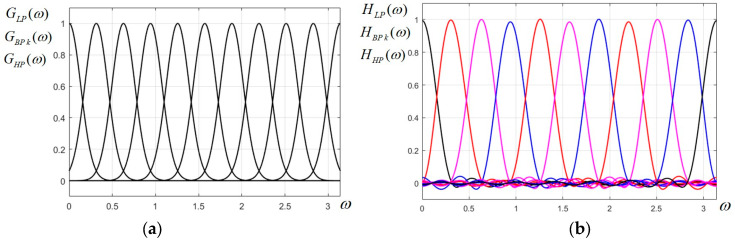

'Christos Nikolaos E. Anagnostopoulos'] This paper proposes an analytical design procedure for 2D FIR circular filter banks and also a novel, computationally efficient implementation of the designed filter bank based on a polyphase structure and a block filtering approach. The component filters of the bank are designed in the frequency domain using a specific frequency transformation applied to a low-pass, band-pass and high-pass 1D prototype with a specified Gaussian shape and imposed specifications (peak frequency, bandwidth). The 1D prototype filter frequency response is derived in a closed form as a trigonometric polynomial with a specified order using Fourier series, and then it is factored. Since the design starts from a 1D prototype with a factored transfer function, the frequency response of the designed 2D filter bank components also results directly in a factored form. The designed filters have an accurate shape, with negligible distortions at a relatively low order. We present the design of two types of circular filter banks: uniform and non-uniform (dyadic). An example of image analysis with the uniform filter bank is also provided, showing that the original image can be accurately reconstructed from the sub-band images. The proposed implementation is presented for a simpler case, namely for a smaller size of the filter kernel and of the input image. Using the polyphase and block filtering approach, a convenient implementation at the system level is obtained for the designed 2D FIR filter, with a relatively low computational complexity.
